USB Bluetooth Audio Adapter for Android Screen Upgrade

Function:

1. Use USB port to communicate with Android

2. Built-in USB HUB, supports expansion of 2 USB ports (since the use of USB Bluetooth transmitter occupies one USB port of Android, the two USB ports on the USB Bluetooth transmitter can be plugged into a USB flash drive).

3. Use Qualcomm Bluetooth module.

4. Support passive and active connection to original Bluetooth.

5. Built-in audio isolation to isolate noise.

Applicable scope:
Mercedes-Benz NTG5.0/5.1/5.2/5.5/6.0/7.0 system vehicles after 2015.
BMW EVO and MGU system vehicles after 2016.

Note:

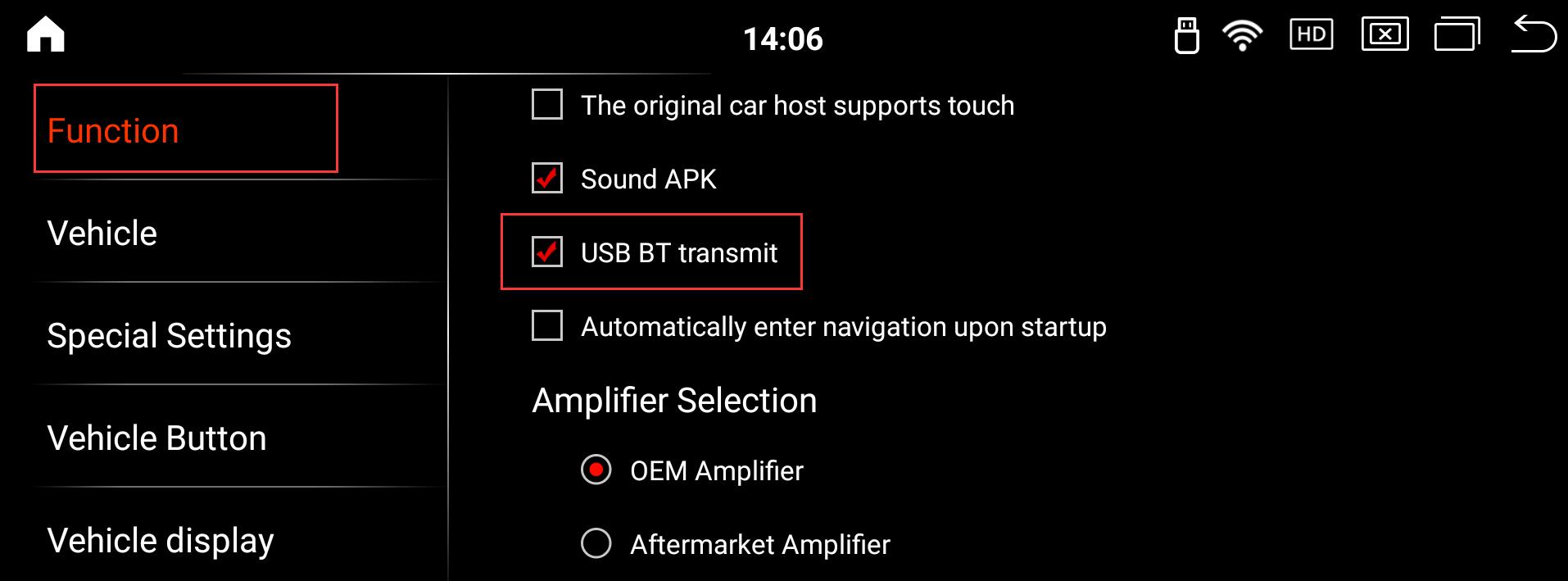

1.Using UGODE’s Android screen, you only need to turn on “USB BT transmit” in Android factory mode, and “BT transmit” will appear in the app.

2.If it is not UGODE’s Android screen, you need to install the app to use it.

https://ugo-uk.oss-us-west-1.aliyuncs.com/TransmitBt.apk

How to use:

1. Plug the “audio out” cable of the Android screen into the USB Bluetooth transmitter.

2. Plug the USB Bluetooth transmitter into the Android USB cable.

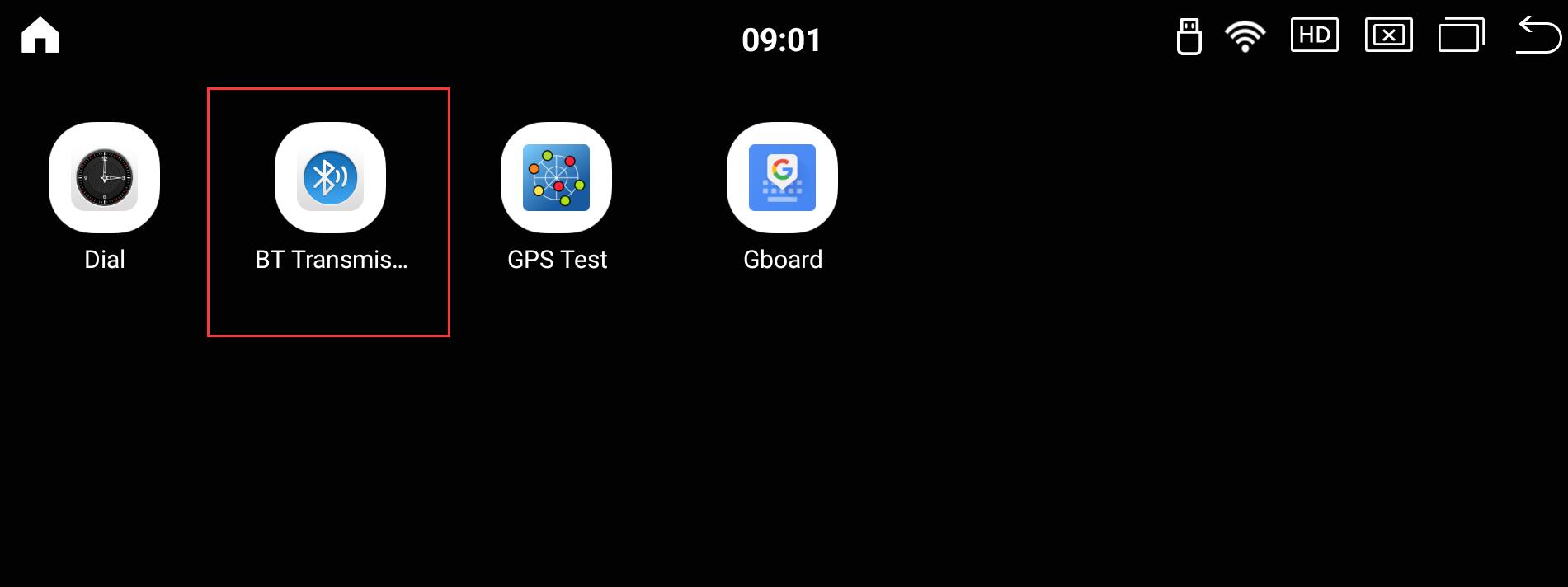

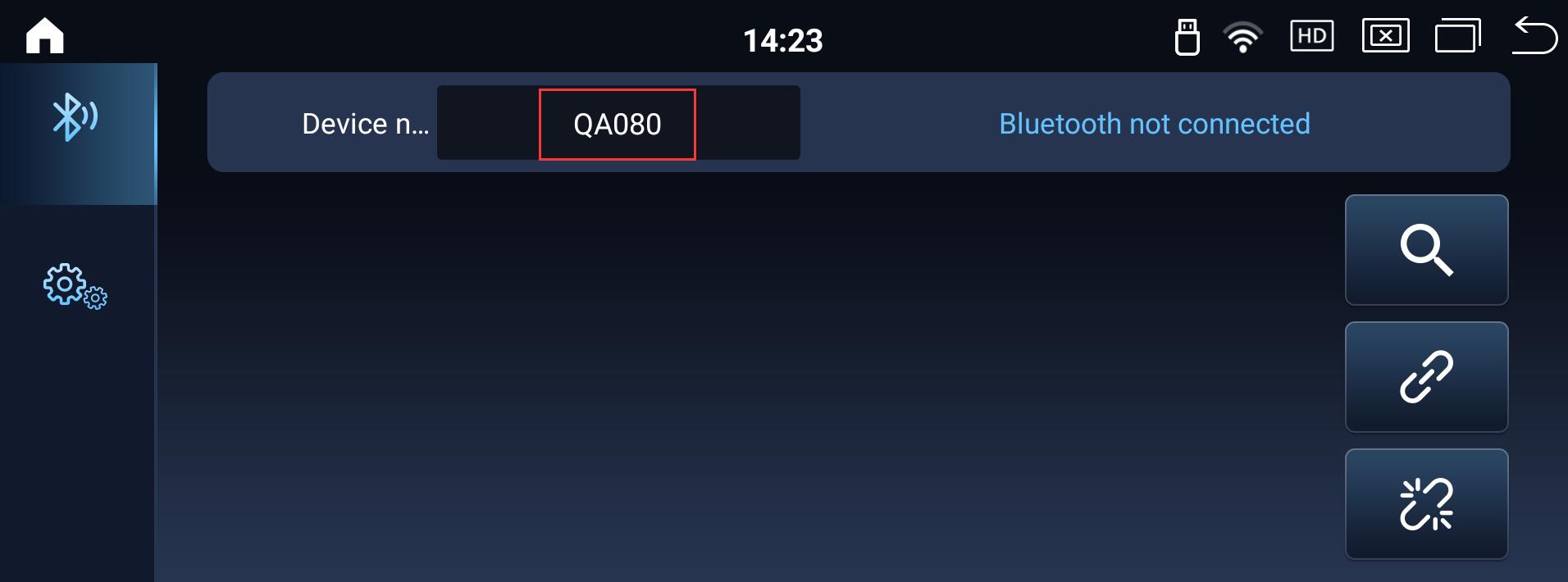

3. Click “BT transmit”, and you will see a Bluetooth name after entering the interface.

4. Enter the original Bluetooth interface, use the search function, search for the USB Bluetooth transmitter, and then match and connect to use.
