Do you have issue of the audio sound delay after upgrading android screen on the Mercedes BENZ NTG5.0 system? We ugode have solution for you by adding DSP amplifier box.
First, let’s learn about the details of Mercedes BENZ NTG5.0 system:
Between the year of 2014 and 2018, the Mercedes systems include NTG5.0,NTG5.1 and NTG5.2. These three systems can use the same Ugode Android screen replacement for installation, with the same cables and base. It is only choose different CAN protocol and vehicle display in factory settings correspondingly
The NTG5.0 system models include below car models : C-Class, GLC, A-Class, CLA, GLA, E-Class, CLS, B-Class, V-Class, SLK, GLE, and GLS. For models like the Mercedes A-Class and GLA, their panels are similar to NTG4.5, so it is generally more accurate to confirm the system through the original car CD host panel and radio menu.
For more information on distinguishing Mercedes systems, please refer to the following link for detailed explanations:
It should be noted that Mercedes C-Class, GLC, and V-Class from 2019 onwards are equipped with NTG5.5/6.0 systems. However, some individual models have original car menus that are similar to NTG5.0/5.2. The distinction between these systems can also be confirmed through the original car panel. The NTG5.0/5.2 main unit panel has a CD slot, while the NTG5.5/6.0 cars do not have a CD slot, as shown in the figure below.
Mercedes NTG5.0 models do not have AUX input, so after installing the Android navigation, the sound can only enter the original car through a USB audio adapter. This can easily cause a delay due to multiple conversions. Because there are many types of original car hosts for Mercedes NTG5.0, general brands like Harman and Mitsubishi do not have this problem, but Panasonic brand hosts are more obviously. The delay is mainly evident when playing videos, with a delay of about 2-3 seconds. This is caused by certain brands of original car hosts. After installing the screen replacement machine, this delay is considered normal.
However, to avoid the problem of asynchronous sound and image, the solution is to install the Ugode brand DSP amplifier DSP100, without using a USB audio adapter. Installing the DSP100 amplifier can perfectly solve the delay issue, and the Ugode DSP100 amplifier requires dedicated cables for installation.
The following describes the wiring method and related settings for the DSP100 amplifier.

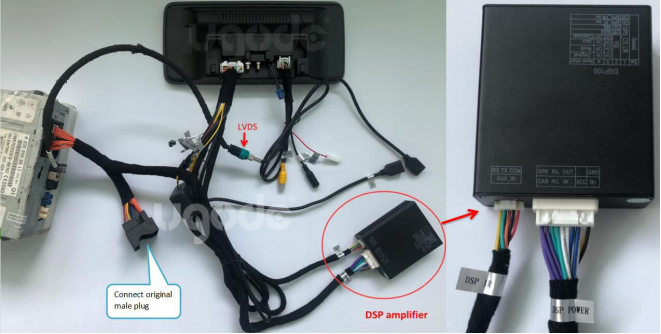

3. The following is the wiring diagram for NTG5.0/5.1/5.2:

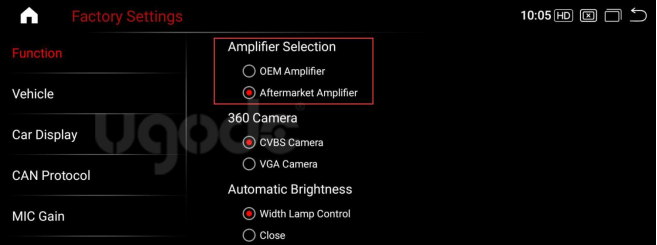

Android factory mode Amplifier selection: Aftermarket Amplifler
Routes：Settings-Factory(Key 2018)-Function-Amplifler Selection-Aftermarket Amplifler
Wait 10 seconds after the setting is completed then press the reset button on the machine panel to restart the machine and you’re done
Note:
(1) The model of the Ugode DSP amplifier box is DSP100, which can be used for installation in NTG5.0/5.1/5.2 with the same set of cables. It can also be installed in 5.5/6.0 cars with different cables.
(2) The DSP100 is only suitable for installation in ordinary cars without the Burmester sound system. Cars with the Burmester sound system require a different amplifier and cables. The presence of the Burmester sound system can be distinguished by the speaker cover on the car door.
