AUDI A6 2012-2018 Android Display Autoradio CarPlay

AUDI A6 Android10/13 Autoradio 10.25/12.3inch Display Upgrade

Short Description:

*  Audi A6 2012-2018 display replacement for original small OEM screen, no need reprogramming or coding and cutting cables.

* High level & Low level supported

*  Keep original radio features after upgrade, such as radio , CD , GPS navigation, bluetooth, Joystick knob control, etc.

*  Easy switch and operation between android and original AMI radio system.

*  Multiple functions and big screen enhance car performance.

* 4G LTE or Wifi network

* Bluetooth handfree call

* GPS Navigation

* Music and Video playing

*  Android 10:

  Wireless Carplay

  Wired Android Auto through USB

*  Android 13:

  Wireless & Wired Apply Carplay

  Wireless & Wired Android Auto, Support Phone Link


Features

Specification

Video

Product Tags

It is specially made for Audi A6 without or without AMI 2012-2018 year.

10.25inch or 12.3inch screen fit both LHD and RHD Audi A6. Audi A6 has low profile and high profile difference. need to check the dashboard before order.

Support split screen and PIP: Multi-tasking run 2 apps at the same time, picture in picture.

Keep original AMI radio system features such as factory radio, GPS navigation, Bluetooth, DVD/CD,USB,SD, etc,
support factory rear view camera reverse trajectory. 360 camera, door open warning, be compatible with original iDrive knob control
and steering wheel control, be compatible with original sound system and optic fiber, play lossless audio.

Android system functions include Android navigation, touch screen, android music and video, android Bluetooth call and Bluetooth music, USB port, SD card, android apps installation.

Built-in A2DP, Hands-free calling,Transfer phonebook with alphabetic name search, Caller record, Call history.

Support common video and audio formats: MP4, AVI, MKV, WMV, MOV, FLV and MP3, WMA, AAC, FLAC, APE, WAV other common formats.

Built in GPS with rapid positioning and navigation support google map and waze etc.

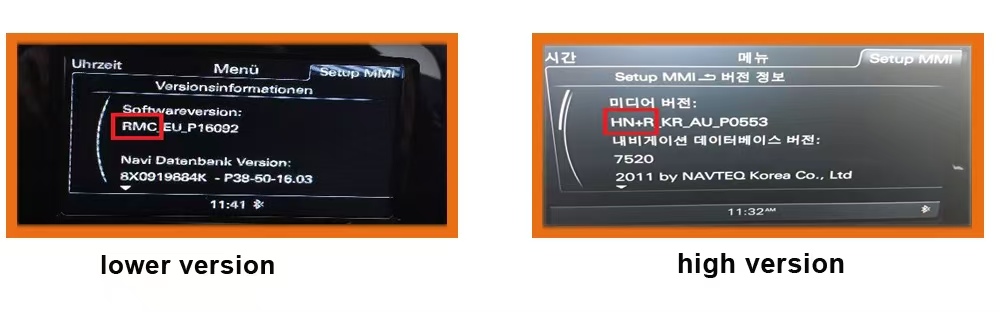

Q:  How to check if Audi auto radio is Low profile or high profile ?

A:  The android screen hardware for AUDI low and high profile is different.

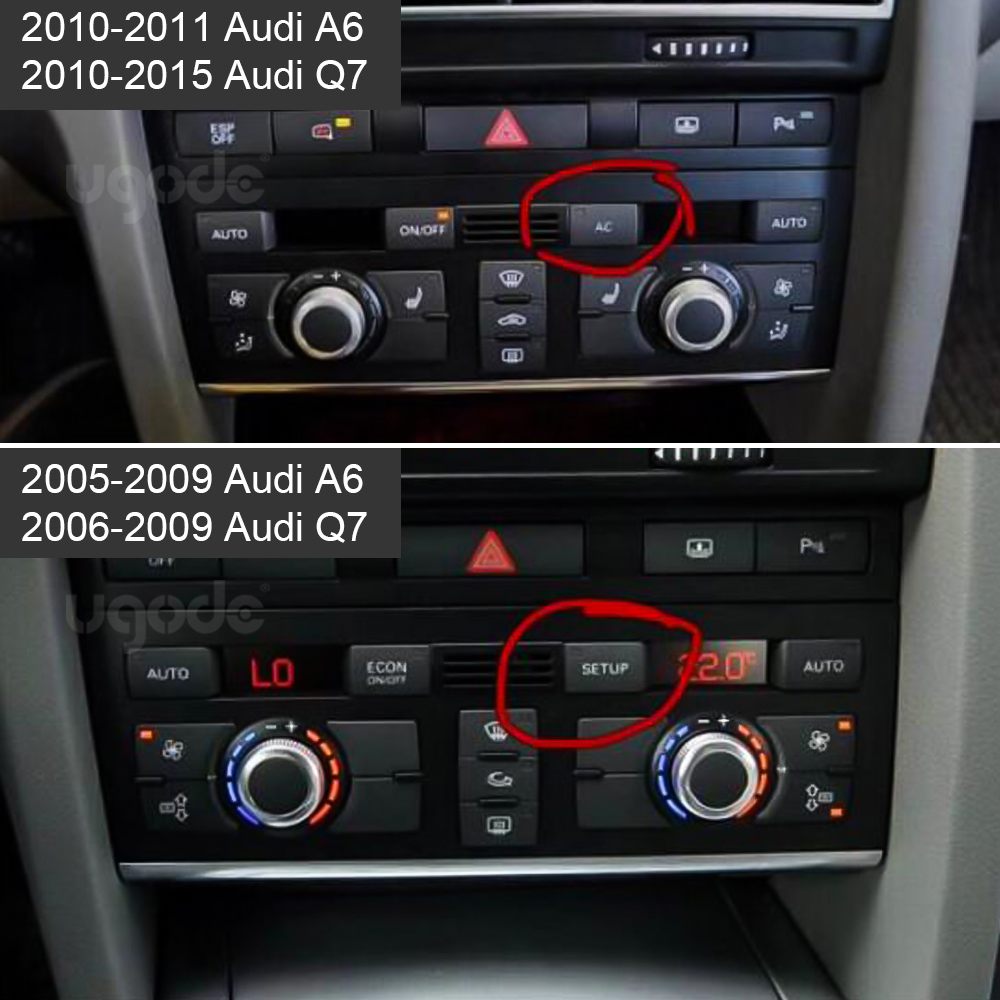

Please check the radio panel and dashboard for checking low or high system, the aircondition control of low profile is the radio panel.  high version has knob control near gear.



详情




  • Previous:
  • Next:

  • Specification 1 (Real Android13)
    1 CPU Qualcomm Snapdragon 662(SM6115) /665(SM6125) Octa core 11nm LPP
     4 * A73 (2.0Ghz) + 4 * A53 (1.8Ghz)
    2 GPU Adreno 610 (950Mhz)
    3 OS Android 13
    4 RAM ROM 4+64GB/ 8+128GB/ 8+256GB EMCP chip eMMC5.1/UFS2.1+LPDDR4X
    5 Screen&Resolution 10.25inch IPS LCD G+G Touch Screen  1280*480 /1920*720
    12.3inch IPS G+G Touch HD Screen 1920*720
    6 Bluetooth  Bluetooth 5.0+ BR/EDR+BLE.
    7 WiFi IEEE 802.11 2.4G b/g/n 5G a/g/n/ac.
    8 4G SIM  LTE Category 44DL Down 150Mbps 5UL Up 75Mbps
    9 Video Support 4K HD video, H.264 (AVC)H.265 (HEVC)
    10 Image OpenGL ES 3.1+,OpenCL2.0
    11 Carplay

    Wireless & Wired Apply Carplay, Wireless & Wired Android Auto, Support Phone Link

    Wireless and Wired  Phone Mirroring
    12 Camera AHD CCD Reverse Camera
    13 GPS GPS/Beidou/Glonass,support built in or on-line maps
    14 Extend Memory Support Micro TF card slot, USB port. 128M max
    15 Suppot Real Time Weather ;Ota (on-line upgrade)
    16 Optional  360 Panoramic View Camera optional

    Specification 2  (Android10)
    1 CPU Qualcomm snapdragon M501A (MSM8953) 14nm LPP Cortex-A53 64
    Octa core 1.8GHz.
    2 GPU Adreno 506 (650MHz)
    3 OS Android 10
    4 RAM ROM 4GB +64GB, eMMC5.1+LPDDR3
    5 Screen&Resolution 10.25inch IPS LCD G+G Touch Screen  1280*480 /1920*720
    12.3inch IPS G+G Touch HD Screen 1920*720
    6 Bluetooth  BT4.1+ BR/EDR+BLE
    7 WiFi IEEE 802.11; 2.4G b/g/n  ;5G a/g/n/ac
    8 4G SIM LTE Cat 7 Down 300Mbps Up 100Mbps
    9 Video Support 4K HD video, H.264 (AVC)H.265 (HEVC)
    10 Image OpenGL ES 3.1+,OpenCL2.0
    11 Carplay

    Wireless Carplay, Wired Android Auto through USB

    12 Camera AHD CCD Camera
    13 GPS GPS/Beidou/Glonass,support built in or on-line maps
    14 Extend Memory Support Micro TF card slot, USB port. 128M max
